R24-150B
DC/DC converter,21-27Vin,95-210Vout 50mA | RECOM Power Inc. R24-150B
Availability: Out of Stock
Package Type: CUSTOM
CAD Models: Symbol, Footprint, 3D Model
More Resources
Use this component in your design
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the R24-150B by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

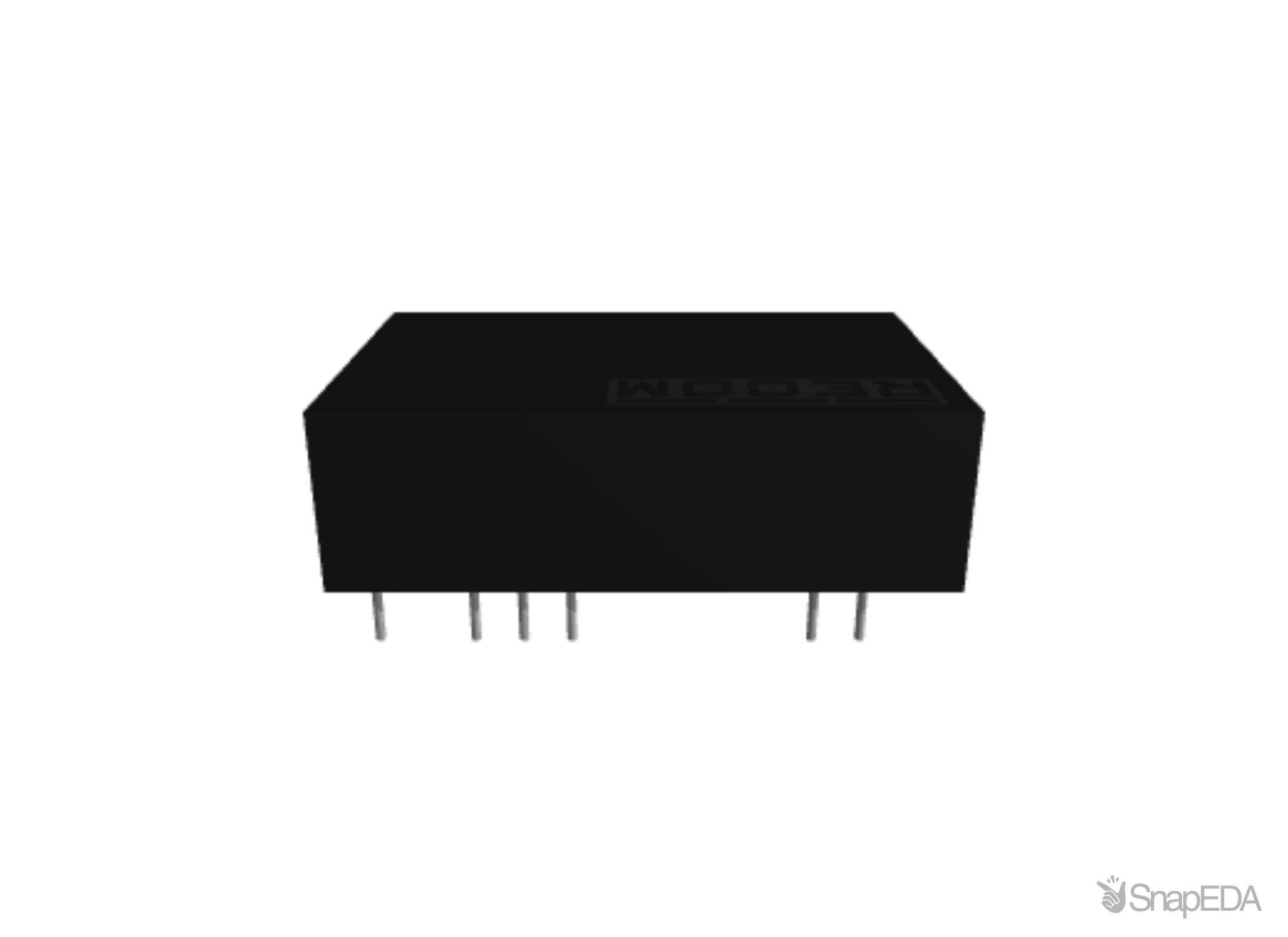

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the R24-150B
| Part Name | R24-150B |
| Manufacturer | Recom Power |
| Category | Power Products |
| Number of Outputs | 1.0 |
| Isolation Voltage (V) | 3000.0 |
| Output Current (A) | 0.05 |
| Case Package | DIP24 |
| Series | Rxx-B |
| Short Circuit Protection | True |
| Packaging Type | Tube |
| high_runner | TRUE |
| Output Voltage (V) | [92.0, 200.0] |
| Lead Free Status | True |
| Product Link | https://recom-power.com/en/products/dc-dc-converters/rec-p-R24-150B.html |
| Power Rating | 5.0 |
| Input Voltage (V) | [21.0, 27.0] |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the R24-150B
