RP-1515D
Recom Iso DC-DC Converter,Vin 13.5to16.5VDC,Vout +/-15VDC,I/O isolation 2600VAC | RECOM Power Inc. RP-1515D
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RP-1515D by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

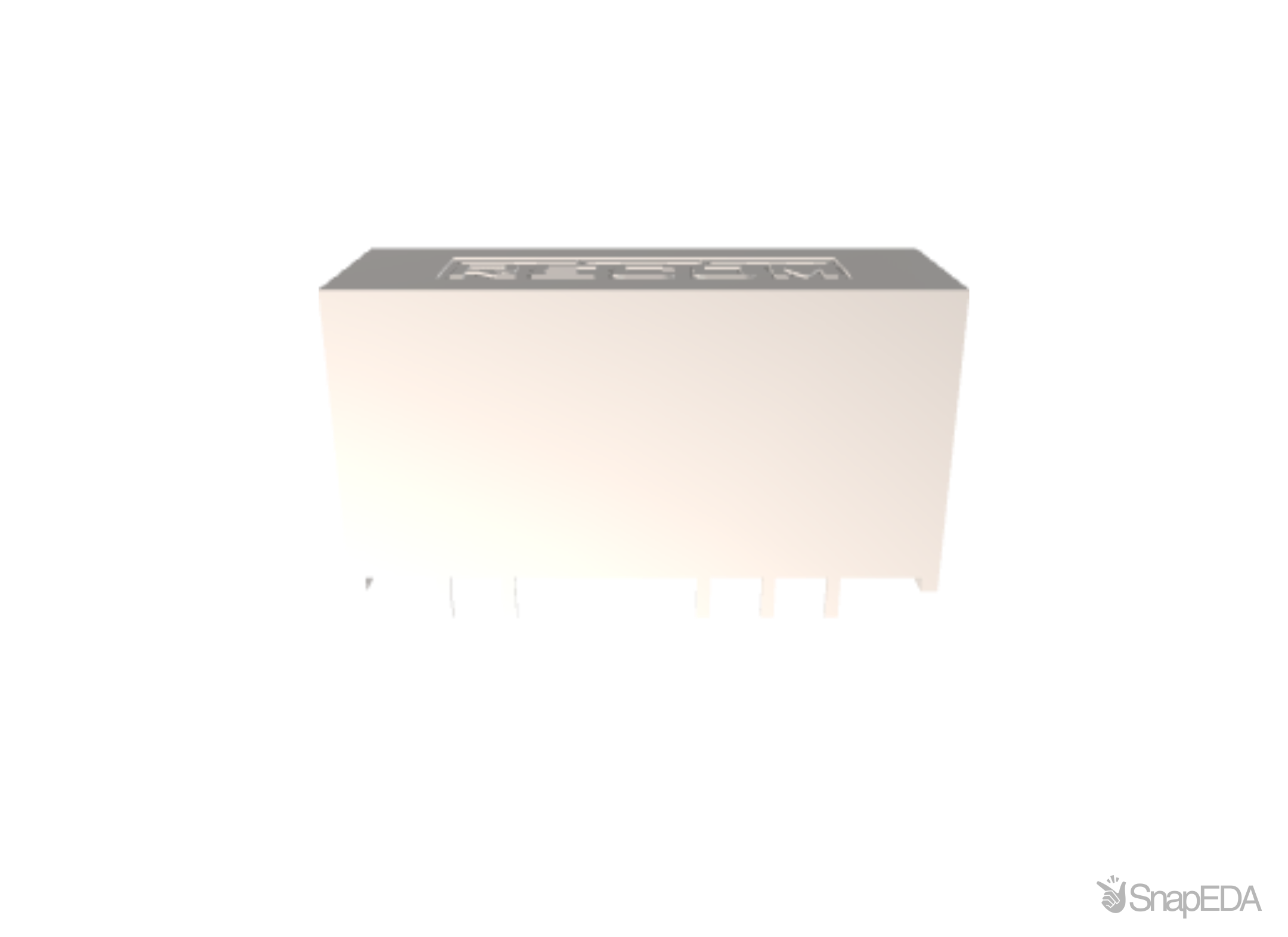

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RP-1515D
| Part Name | RP-1515D |
| Manufacturer | Recom Power |
| Category | Power Products |
| Number of Outputs | 2.0 |
| Isolation Voltage (V) | 5200.0 |
| Case Package | SIP7 |
| Series | RP |
| Short Circuit Protection | False |
| Packaging Type | Tube |
| Lead Free Status | True |
| Output Voltage (V) | [15.0, 15.0] |
| Power Rating | 1.0 |
| Input Voltage (V) | [13.5, 16.5] |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the RP-1515D
