TEN 8-4823WI
8 Watt DC/DC converter, railway, 4:1 input incl. 110 VDC nominal, high temperature range, encapsulated, DIP-24 metal package
Availability: In Stock
Package Type: DIP-24
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TEN 8-4823WI by Traco Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

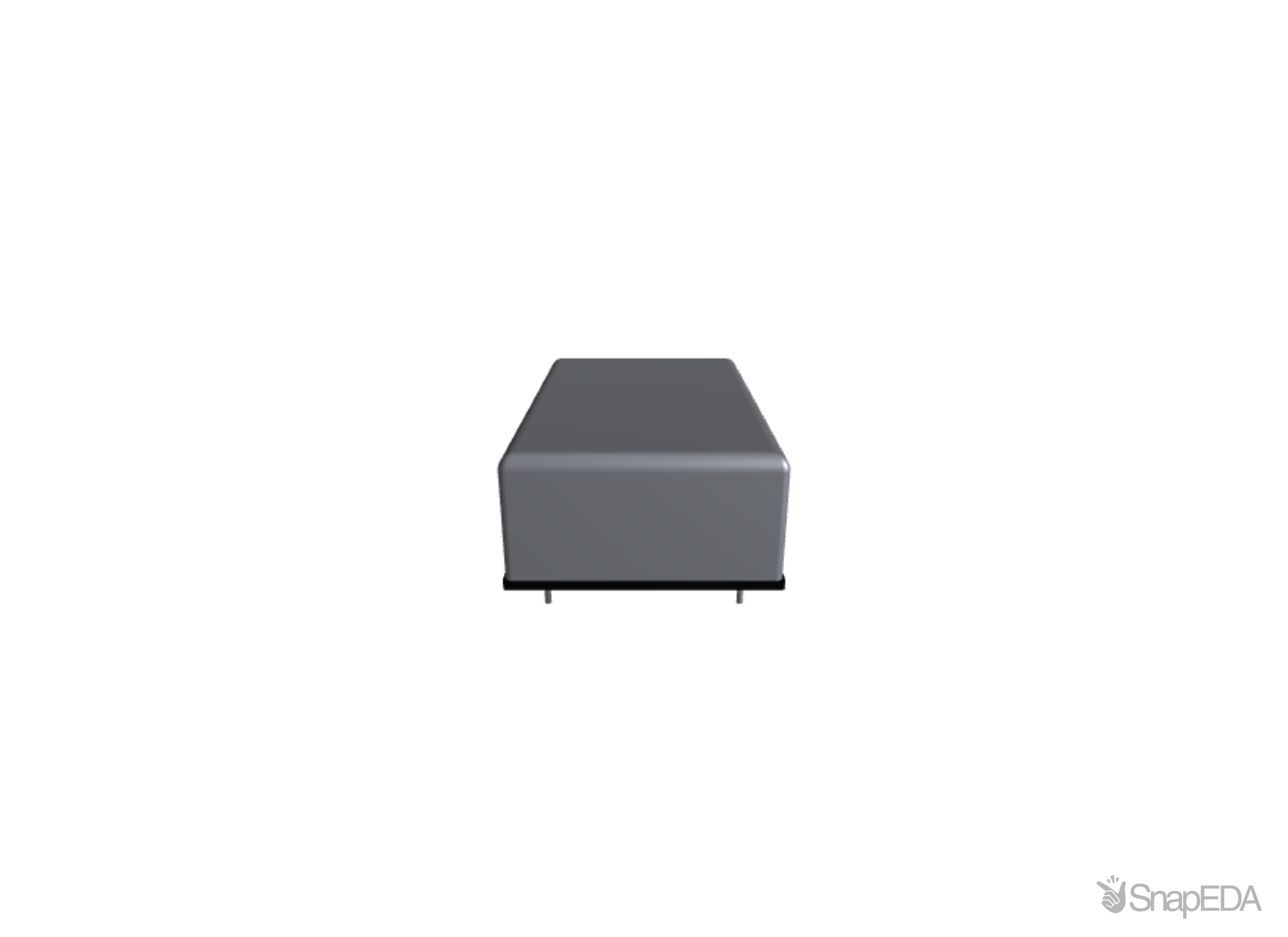

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TEN 8-4823WI
| Part Name | TEN 8-4823WI |
| Manufacturer | Traco Power |
| Category | Power Products |
| Product Length | 31.8 |
| Product Width | 20.3 |
| GTIN | 7613441014807 |
| ESD Sensitive | No |
| Isolation Voltage Input and Output (V) | 1600 VDC |
| Power | 8.0 |
| Insulation System | Functional Insulation |
| REACH | Yes |
| Product Height | 10.2 |
| Efficiency | 87.0 |
| Compatible Accessories | TCK-050 |
| Housing Type | Metal Case |
| Family | DC/DC Converter isolated, regulated |
| Remote on-off function? | Yes |
| Number of Outputs | dual |
| Adjustable output? | No |
| Iout | 267/267 |
| Warranty Period | 3-year |
| Temperature Range Max. | 85 |
| Comformity | https://www.tracopower.com/ch/conformity-regulatory |
| Footprint Type | DIP24 |
| RoHS | Yes |
| Vout | ±15 |
| Mounting Type | PCB Mount |
| Series Name | TEN 8WI |
| Lifecycle Status | Active |
| Vin | 18-75 |
| high_runner | TRUE |
| Weight | 18.0 |
| Temperature Range Min. | -40 |
| Connection Type | THD (Through-Hole Device) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
