THD 10-2423N
10 Watt DC/DC converter, industrial, 2:1 input, optimized design, encapsulated, DIP-24
Availability: In Stock
Package Type: DIP-24
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the THD 10-2423N by Traco Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

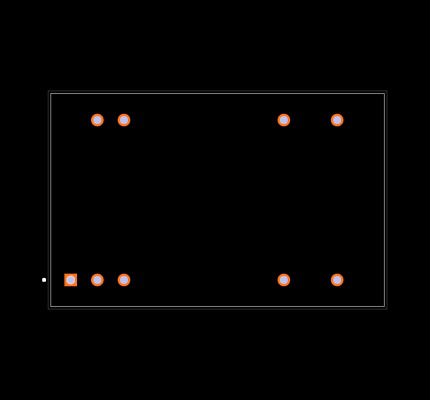

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the THD 10-2423N
| Part Name | THD 10-2423N |
| Manufacturer | Traco Power |
| Category | Power Products |
| Product Length | 31.8 |
| Product Width | 20.3 |
| GTIN | 7613441019369 |
| ESD Sensitive | No |
| Isolation Voltage Input and Output (V) | 1500 VDC |
| Power | 10.0 |
| Insulation System | Functional Insulation |
| REACH | Yes |
| Vout | ±15 |
| Product Height | 10.2 |
| Efficiency | 89.0 |
| Housing Type | Metal Case |
| Family | DC/DC Converter isolated, regulated |
| Remote on-off function? | Yes |
| Number of Outputs | dual |
| Adjustable output? | No |
| Iout | 333/333 |
| Warranty Period | 3-year |
| Temperature Range Max. | 85 |
| Comformity | https://www.tracopower.com/ch/conformity-regulatory |
| Footprint Type | DIP24 |
| RoHS | Yes |
| Weight | 17.3 |
| Mounting Type | PCB Mount |
| Series Name | THD 10N |
| Lifecycle Status | Active |
| Vin | 18-36 |
| high_runner | TRUE |
| Temperature Range Min. | -40 |
| Connection Type | THD (Through-Hole Device) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the THD 10-2423N by Traco Power from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
351
|
|
Visit Site | |
| Arrow Europe |
54
|
|
Visit Site | |
| Verical |
54
|
1 x $45.54
|
Visit Site |
No issues have been reported for the THD 10-2423N
If you experienced any issues with the symbol or footprint, please report it.
