TL16C554FN
Quad UART with 16-Byte FIFOs
Availability: In Stock
Package Type: PLCC-68
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TL16C554FN by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

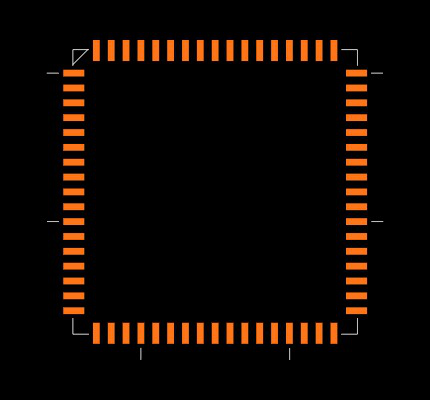

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TL16C554FN
| Part Name | TL16C554FN |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Transmitter And Receiver Fifo Counter | Yes |
| Dimensions | 24.23 x 24.23 x 4.06 (mm) |
| Mounting Type | Surface Mount |
| Receive Fifo | 16 (B) |
| Number Of Channels Per Chip | 4 |
| Typical Operating Supply Voltage (V) | 5 V |
| Package Type | PLCC |
| Minimum Operating Temperature | 0 °C |
| Transmit Fifo | 16 (B) |
| Maximum Operating Temperature | +70 °C |
| Pin Count | 68 |
| Maximum Data Rate | 1 (MBd) |
Inventory for the TL16C554FN by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
19,476
|
15 x $20.09
|
Visit Site | |
|
★ Featured
|
8
|
|
Visit Site | |
|
★ Featured
|
70
|
21 x $16.68
|
Visit Site | |
| Texas Instruments |
|
|
Visit Site | |
| Verical |
2,146
|
|
Visit Site |
No issues have been reported for the TL16C554FN
