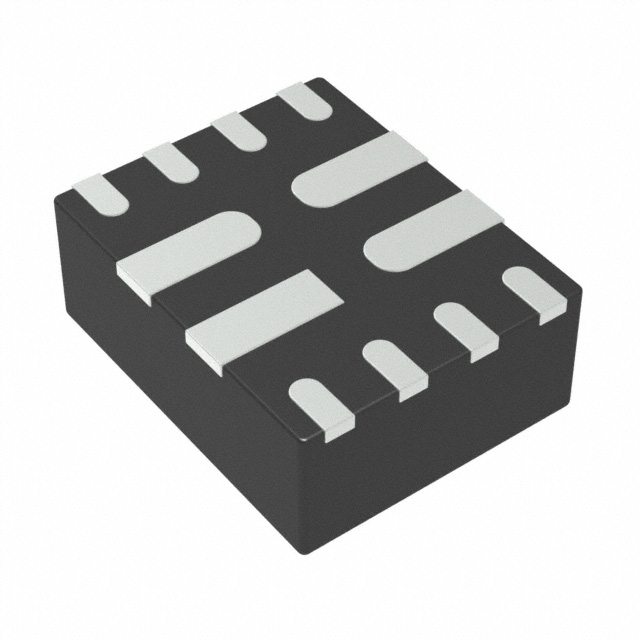

TPS2121RUXR
2.7-V to 22-V, 56-mΩ, 4.5-A, power mux with seamless switchover
Availability: In Stock
Package Type: VQFN-HR-12
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TPS2121RUXR by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
