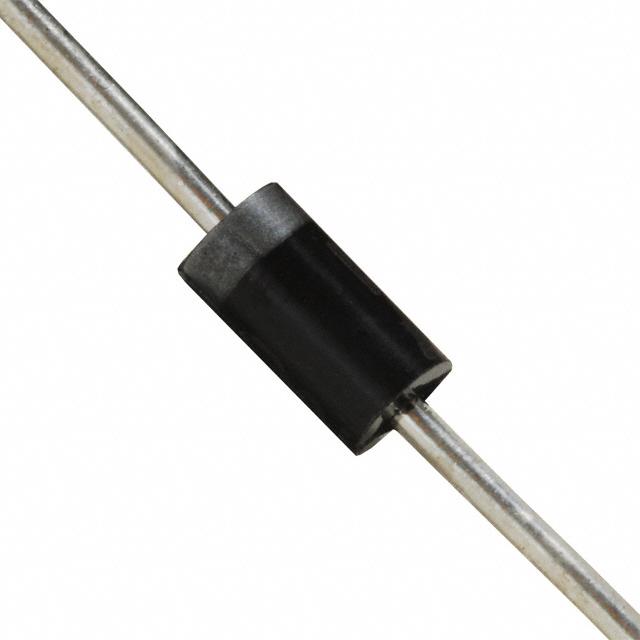

UF4001
DIODE, FAST, 1A, 50V; Diode Type:Fast Recovery; Repetitive Reverse Voltage Vrrm Max:50V; Forward Current If(AV):1A; Forward Voltage VF Max:1V; Reverse Recovery Time trr Max:50ns; Forward Surge Current Ifsm Max:30A; Operating Temperature Range:-65°C to +150°C; Diode Case Style:DO-41; No. of Pins:2; SVHC:No SVHC (19-Dec-2011); Alternate Case Style:DO-41; Approval Bodies:UL; Current If @ Vf:1A; Current Ifsm:30A; Current Temperature:25°C; External Depth:2.7mm; External Diameter:2.7mm; External Length / Height:5.2mm; External Width:2.7mm; Forward Current If Max:1A; Forward Voltage:1V; Junction Temperature Tj Max:150°C; Junction Temperature Tj Min:-65°C; Lead Length:25.4mm; Package / Case:DO-41; Reverse Recovery Time trr Typ:50ns; Termination Type:Axial Leaded; Weight:0.0003kg
Availability: Out of Stock
Package Type: DO-41
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the UF4001 by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the UF4001
| Part Name | UF4001 |
| Manufacturer | ON Semiconductor |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
No issues have been reported for the UF4001
