UMK316B7104KLHT
Cap Ceramic 0.1uF 50V X7R 10% Pad SMD 1206 125°C Automotive T/R
Availability: In Stock
Package Type: 3216
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the UMK316B7104KLHT by Taiyo Yuden and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

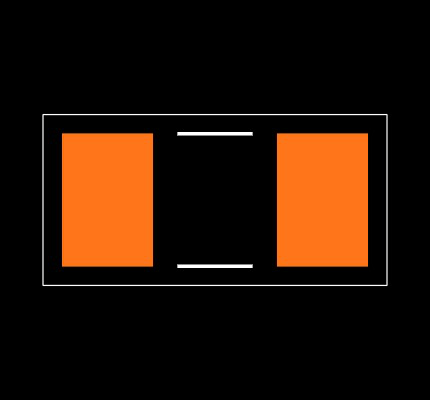

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the UMK316B7104KLHT
| Part Name | UMK316B7104KLHT |
| Manufacturer | Taiyo Yuden |
| RatedVoltage(V) (V) | 50 |
| TemperatureCoefficient | X7R |
| CapacitanceTolerance(%) | [10, -10] |
| Capacitance(pF) | 100000.0 |
| Series | M |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the UMK316B7104KLHT by Taiyo Yuden from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
2,000
|
|
Visit Site | |
|
★ Featured
|
1,125
|
|
Visit Site | |
|
★ Featured
|
1,240
|
6,280 x $0.05
|
Visit Site | |
| Verical |
1,860
|
562 x $0.14
|
Visit Site |
No issues have been reported for the UMK316B7104KLHT
If you experienced any issues with the symbol or footprint, please report it.
