V23079A2003B301
SnapVerified
RELAY GEN PURPOSE DPDT 2A 12V | TE Connectivity V23079A2003B301
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the V23079A2003B301 by TE Connectivity Potter & Brumfield Relays and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

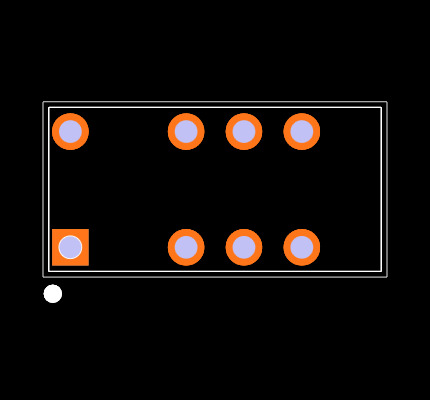

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the V23079A2003B301
| Part Name | V23079A2003B301 |
| Manufacturer | TE Connectivity |
| Category | Relays |
| Coil Power Rating (DC) | 200 |
| Coil Special Features | Overmolded Coil |
| Contact Limiting Making Current (A) | 2 |
| Relay Type | P2 Relay V23079 |
| Height Class (Mechanical) | 9 – 10 mm |
| Width | .283 |
| Power Consumption | 140 |
| Insulation Initial Resistance | 1000000 |
| Contact Limiting Continuous Current (A) | 2 |
| Contact Switching Voltage (Max) (V) | 220 |
| Coil Resistance | 1029 |
| Contact Current Class (A) | 0 – 2 A |
| Contact Arrangement | 2 Form C (CO) |
| Coil Type | Monostable |
| Voltage Standing Wave Ration (HF Parameter) (V) | 1.04 @ 100MHz |
| Contact Number of Poles | 2 |
| Contact Plating Material | Gold |
| TE Internal Number | 3-1393789-7 |
| Performance Type | Standard |
| Relay Style | P2 V23079 Relay |
| Width Class (Mechanical) | 6 – 8 mm |
| Product Type | Relay |
| Terminal Type | PCB-THT |
| Insulation Creepage Class | 1.5 – 3 |
| Contact Special Features | Bifurcated/Twin Contacts |
| Insulation Clearance Class | 0 – 2.5 |
| Operating Temperature Range | -40 – 85 |
| Coil Voltage Rating (V) | 5 |
| Packaging Method | Box & Carton |
| Insertion Loss (HF Parameter) | -.02dB @ 100MHz |
| Environmental Ambient Temperature (Max) | 85 |
| Length | 14.6 |
| Contact Switching Load (Min) | 10mA @ .2V |
| Insulation Special Features | 2500V Initial Surge Withstand Voltage between Contacts & Coil |
| Insulation Initial Dielectric Between Coil/Contact Class | 1000 V – 1500 VA |
| Coil Magnetic System | Monostable, DC, Polarized |
| Actuating System | DC |
| Isolation (HF Parameter) | -20.7dB @ 900MHz |
| Environmental Ambient Temperature Class | 70 – 85°C |
| Contact Voltage Rating (V) | 220 |
| Weight | 2.8 |
| Mounting Type | Printed Circuit Board |
| Contact Limiting Short-Time Current (A) | 2 |
| Contact Limiting Breaking Current (A) | 2 |
| Coil Power Rating Class | 100 – 150 mW |
| Height | 9.5 |
| Contact Current Rating (A) | .5 |
| Insulation Creepage Between Contact and Coil | .098 |
| Insulation Clearance Between Contact and Coil | 1.3 |
| Termination Type | Through Hole |
| Insulation Initial Dielectric Between Adjacent Contacts | 1000 |
| Insulation Initial Dielectric Between Contacts and Coil | 1500 |
| Length Class (Mechanical) | 14 – 16 mm |
| Environmental Category of Protection | RTIII |
| Insulation Initial Dielectric Between Open Contacts | 1000 |
| Contact Material | Ruthenium |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the V23079A2003B301 by TE Connectivity Potter & Brumfield Relays from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
4,862
|
|
Visit Site | |
|
★ Featured
|
4,240
|
|
Visit Site | |
|
★ Featured
|
8,578
|
400 x $1.13
|
Visit Site | |
| Arrow Electronics |
1,278
|
1 x $3.19
|
Visit Site | |
| Onlinecomponents |
4,636
|
|
Visit Site | |
| Verical |
3,800
|
|
Visit Site |
No issues have been reported for the V23079A2003B301
If you experienced any issues with the symbol or footprint, please report it.
